BlackVue DR770X-2CH TRUCK

Regular price
S$ 748.00
Sale price
S$ 748.00
Regular price
S$ 0.00

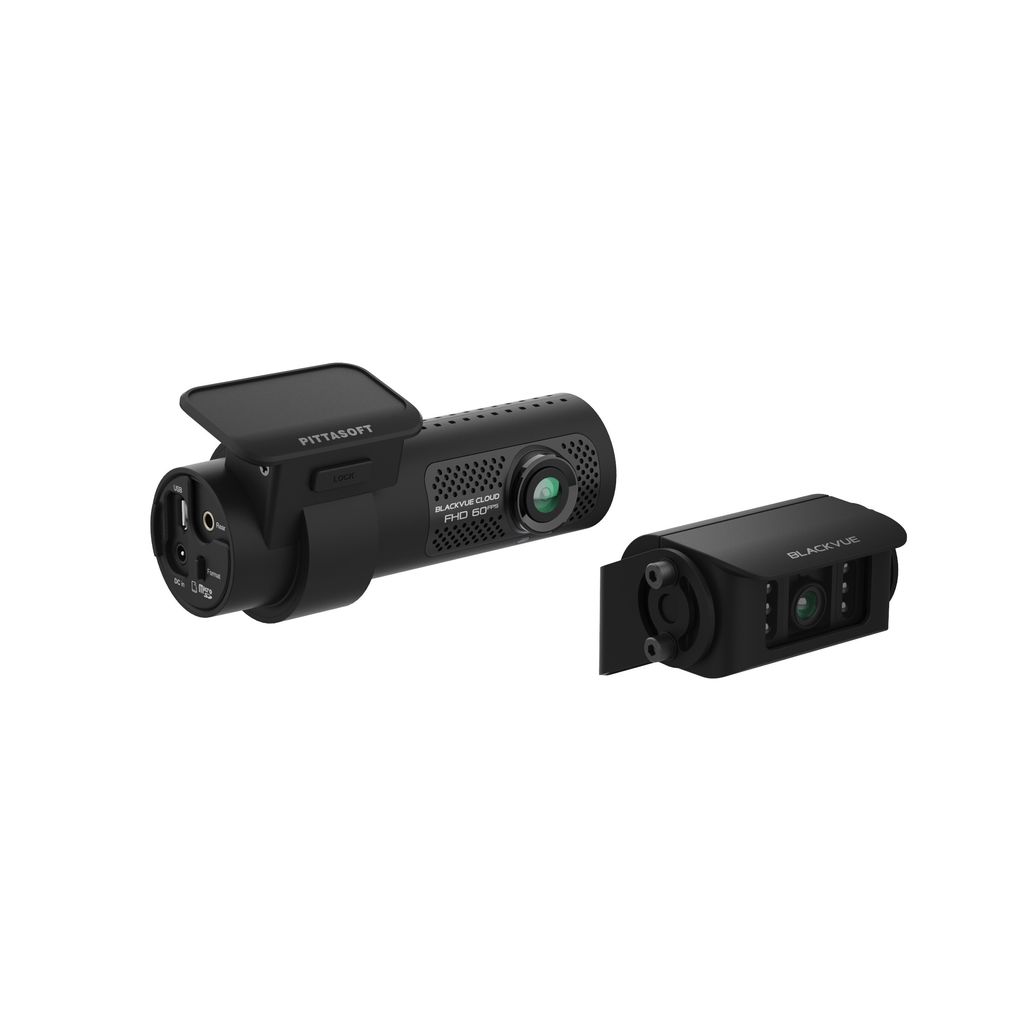

BlackVue DR770X-2CH TRUCK- The Perfect Dashcam for Trucks and Heavy Vehicles

The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles.

Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.

The front and rear cameras both use cutting-edge Sony Starvis sensors, with rear camera being augmented by 6 IR LEDs for clarity in total darkness.

  • Front camera with Full HD (1920 x1080) @ 60FPS
  • Rear camera with Full HD (1920 x1080) @ 30FPS
  • Rear camera illumination 940nm 6 Infrared (IR) LEDS
  • 2.1M Pixels front SONY Starvis image sensor with Night Vision
  • 139º wide view angle
  • WiFi built-in
  • Cloud service compatible
  • Adaptive Format Free
  • Scheduled Reboot
  • Support up to 256GB microSD card
  • Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
  • Support optional LTE Module for Cloud Connectivity
  • Support Native Parking Mode (hardwiring cable included)
  • Seamless Pairing features for effortless setup.
  • Touch sensors triggers manual recording depending on firmware settings.


What's included?


• Front camera
• External Rear camera
• Cigarette lighter power cable (optional)
• Hardwiring power cable
• microSD Card
• microSD Card reader
• Rear camera connection cable (15m)
• Spare mount sticky pads for the Mounting Brackets
• Cable clips(8EA)
• Pry tool
• Quick start guide

Technical Specs


 Model Name DR770X-2CH TRUCK
 Type 2 Channels
 Highlights Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
 Product Dimensions Front:  W 118.5 mm  x H 36 mm  /104 g
 Rear: W  65 mm  x H 36 mm / 157 g
 Rear Camera Connection Waterproof Coaxial cable
 Memory support MicroSD card up to 256GB
 Recording Mode Normal recording,
 Event recording (when impact is detected in normal and parking mode)
 Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
 Parking Mode Yes (with 3-wire hardwiring cable included)
 Parking Mode Event Voice   Notifications Yes
 Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1M Pixel)
 Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1M Pixel)
 Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
 Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
 Resolution Frame Rate Front: Full HD (1920 x 1080) @60fps
 Rear: Full HD  (1920 x 1080) @30fps
 * Frame rate may vary during Wi-Fi streaming.
 Video Codec H.264 (AVC)
 Image Quality and Bitrate   Front/Rear Highest (Extreme):  25+10 Mbps
 Highest:                  12+10 Mbps
 High:                       10+8 Mbps
 Normal:                     8+6 Mbps
 Format Free Yes (Adaptive)
 Event File Overwrite Protection Yes (up to 50)
 SD Card Failure Alert Yes
 Scheduled Reboot Yes
 Video File Extension MP4
 WiFi Built-in (802.11 b.g.n)
 Cloud Compatible Yes
 GPS Built-in (Dual Band: GPS, GLONASS)
 Microphone Buit-in
 Speaker Built-in
 Impact Sensor 3-Axis Acceleration Sensor
 LED Indicators Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
 Rear: Rear Security LED
 Rear Camera IR Illumination 940nm (6 Infrared (IR) LEDS)
 Button Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
 Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
 Operation Temperature -20℃ – 80℃
 Storage Temperature -20℃ – 80℃
 High Temp Cut Off Approx. 80℃
 Backup Battery Built-in supercapacitor
 Input Power

 DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

 Power Consumption Hour Normal Mode: ~4.56W (Avg. 380mA / 12V when GPS "On" 2CH)
 Parking Mode:~3.60W (Avg. 300mA / 12V when GPS "Off" 2CH)
 * Approx. 60mA increase in current when IR LEDs are ON.
 * Actual power consumption may vary depending on use   conditions and environment.
 Certifications Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
 Software BlackVue Viewer
 * Windows 7 or higher and Mac Sierra OS X (10.12) or   higher
 Application BlackVue Application (Android 8.0 or higher, iOS 13.0 or   higher)
 LTE External via Connectivity Module CM100LTE (optional)
 Bluetooth Built-in (V2.1+EDR/4.2)
 Others Adaptive Format-Free File Management System

Recording Time

Memory Capacity
Image Quality
Resolution ( Front + Rear )
Full HD @ 60fps + Full HD @ 30 fps
32GBHighest (Extreme)1 HR 50 MIN
Highest2 HR 50 MIN
High3 HR 40 MIN
Normal4 HR 40 MIN

Highest (Extreme)3 HR 40 MIN
Highest5 HR 40 MIN
High7 HR 20 MIN
Normal9 HR 20 MIN

Highest (Extreme)7 HR 20 MIN
Highest11 HR 20 MIN
High14 HR 40 MIN
Normal18 HR 40 MIN

Highest (Extreme)14 HR 40 MIN
Highest22 HR 40 MIN
High29 HR 20 MIN
Normal37 HR 20 MIN

512GBHighest (Extreme)
29 HR 20 MIN
45 HR 20 MIN
58 HR 40 MIN
74 HR 40 MIN

Highest (Extreme)25 + 10
Highest12 + 10
High10 + 8
Normal8 + 6

Package Info

WEIGHT 1.5 kg
DIMENSIONS 27 × 20 × 24 cm
