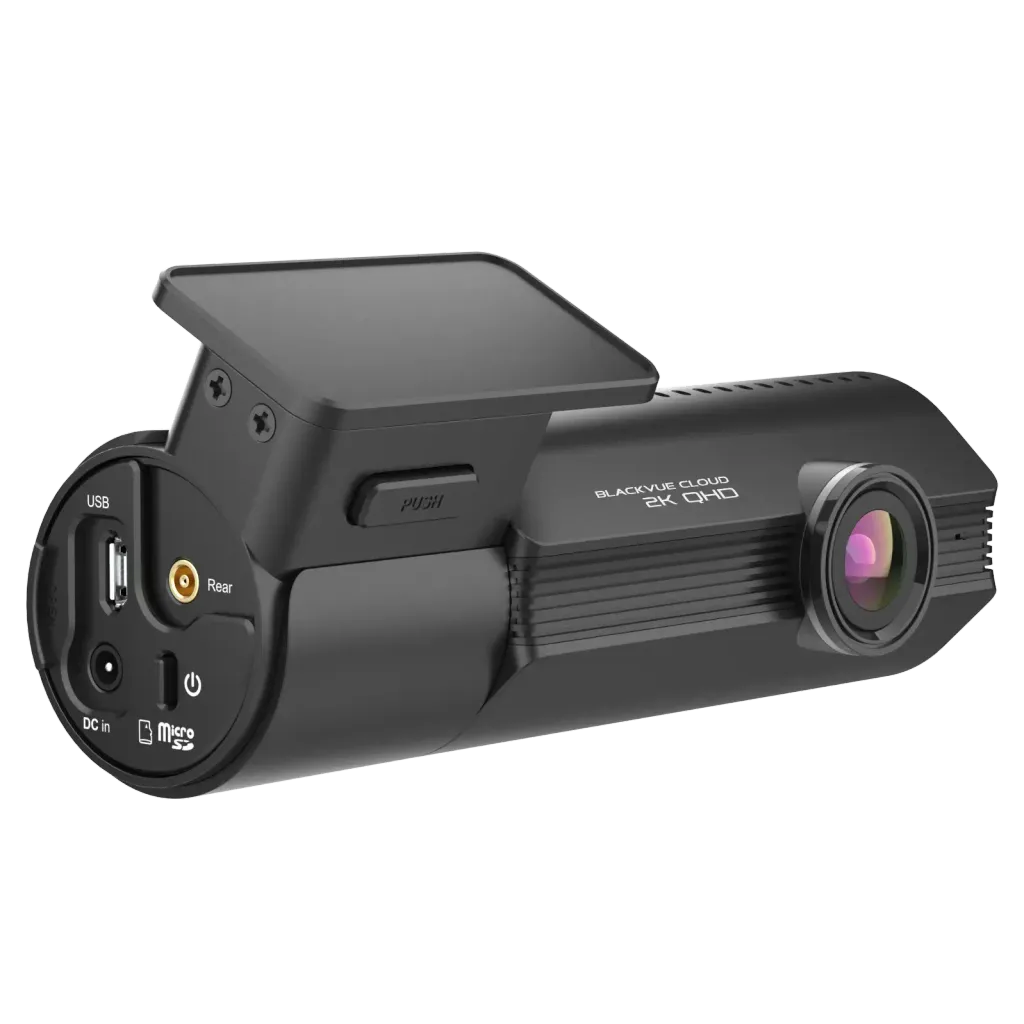

• elite-8-2ch-front

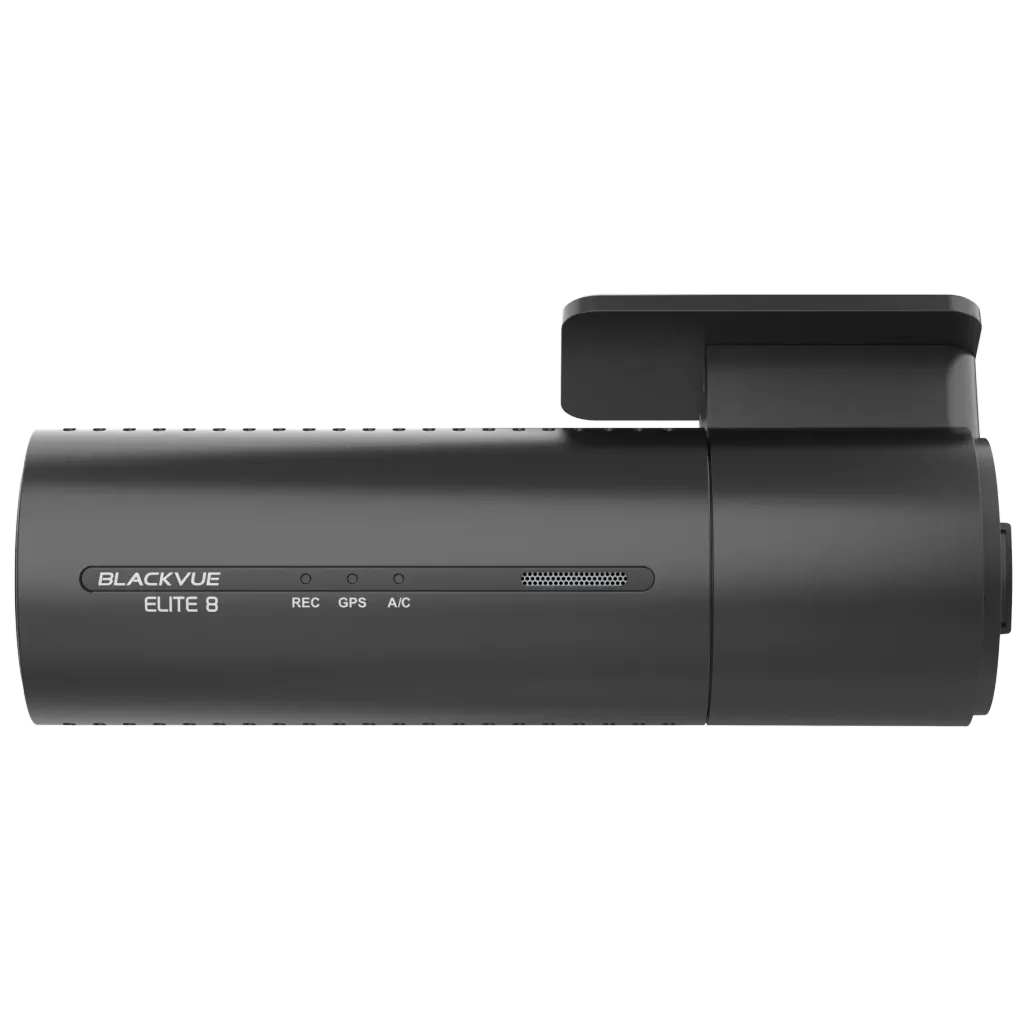

  • ELITE-8-4

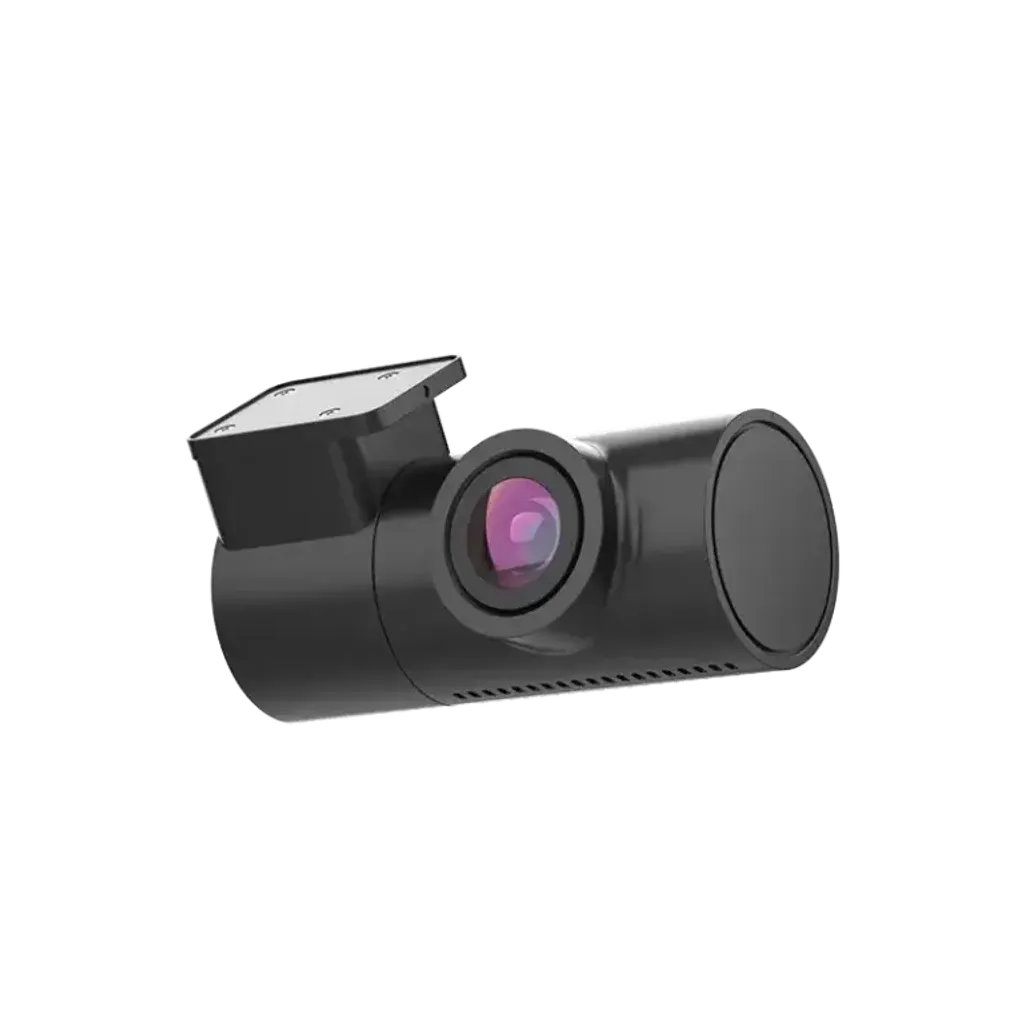

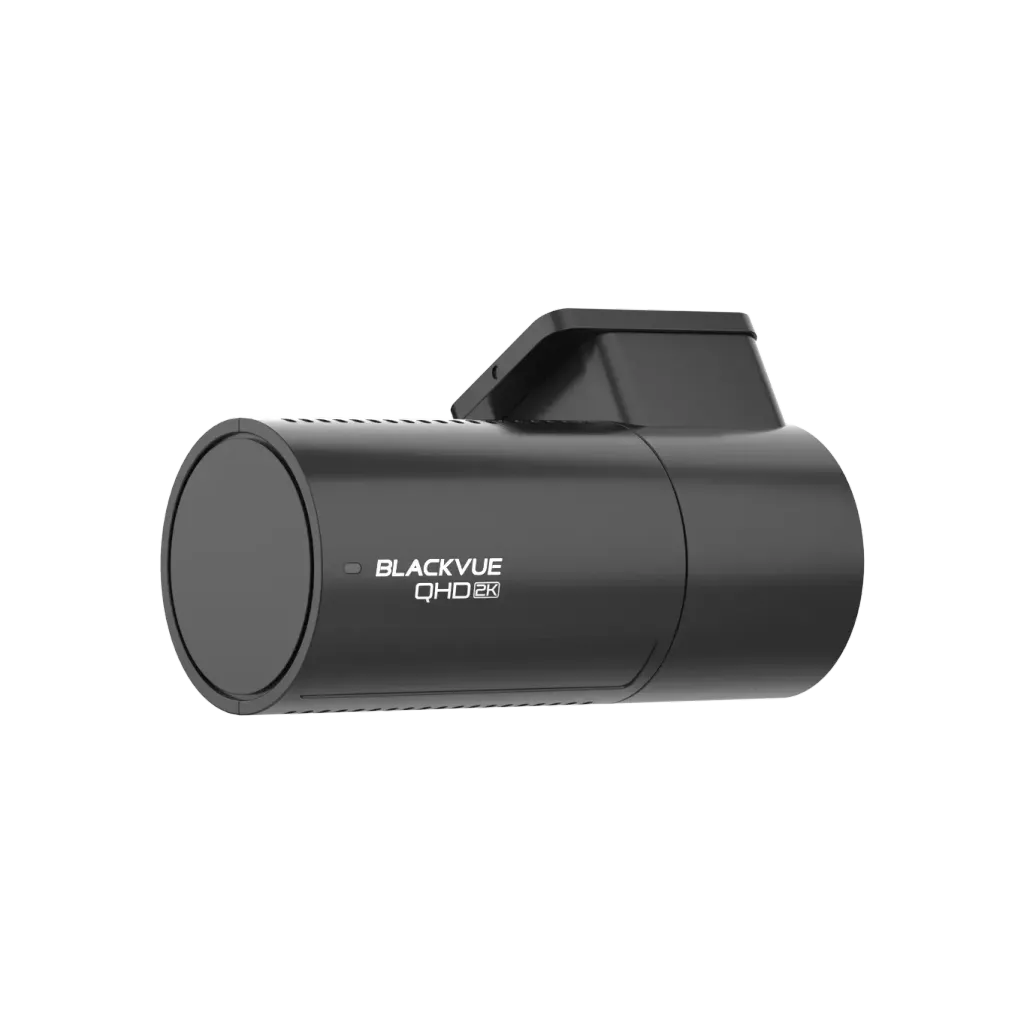

  • elite-8-1ch-rear
  • RC3-2K-16-768x768
  • RC3-2K-11
  • 18-month-and-64GB
1

BlackVue Elite 8-2CH

S$ 668.00
S$ 668.00
S$ 0.00
View More

Features

ELITE 8 redefines dash cam clarity by combining the best components with BlackVue’s expert image tuning mastery acquired over 18 years of experience.

ELITE 8 features top-of-the-line Sony IMX674 STARVIS 2 image sensors in both front and rear cameras.

HDR support on both front and rear cameras.

BlackVue HDR also reduces motion blur and improves detail, making license plates easier to read on moving vehicles.

In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording.

ELITE-8-installed-(FHD)

BlackVue WiFi Dual Full HD Dashcam with Sony’s STARVIS™ image sensor.

  • Front and Rear camera with 2K QHD (2560 x 1440)
  • High Dynamic Range (HDR)
  • Ultra-low Power Parking Mode.
  • Fast 5GHz Wi-Fi.
  • Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
  • WiFi built-in
  • Adaptive Format Free
  • 64GB microSD card included
  • Support up to 1TB microSD card
  • Support Parking Mode with Impact and Motion Detections
  • Support Native Parking Mode (with included hardwiring cable)

Elite 8 overview 1 and 2 (R2)-02Elite 8 overview 1 and 2 (R2)-01

Video

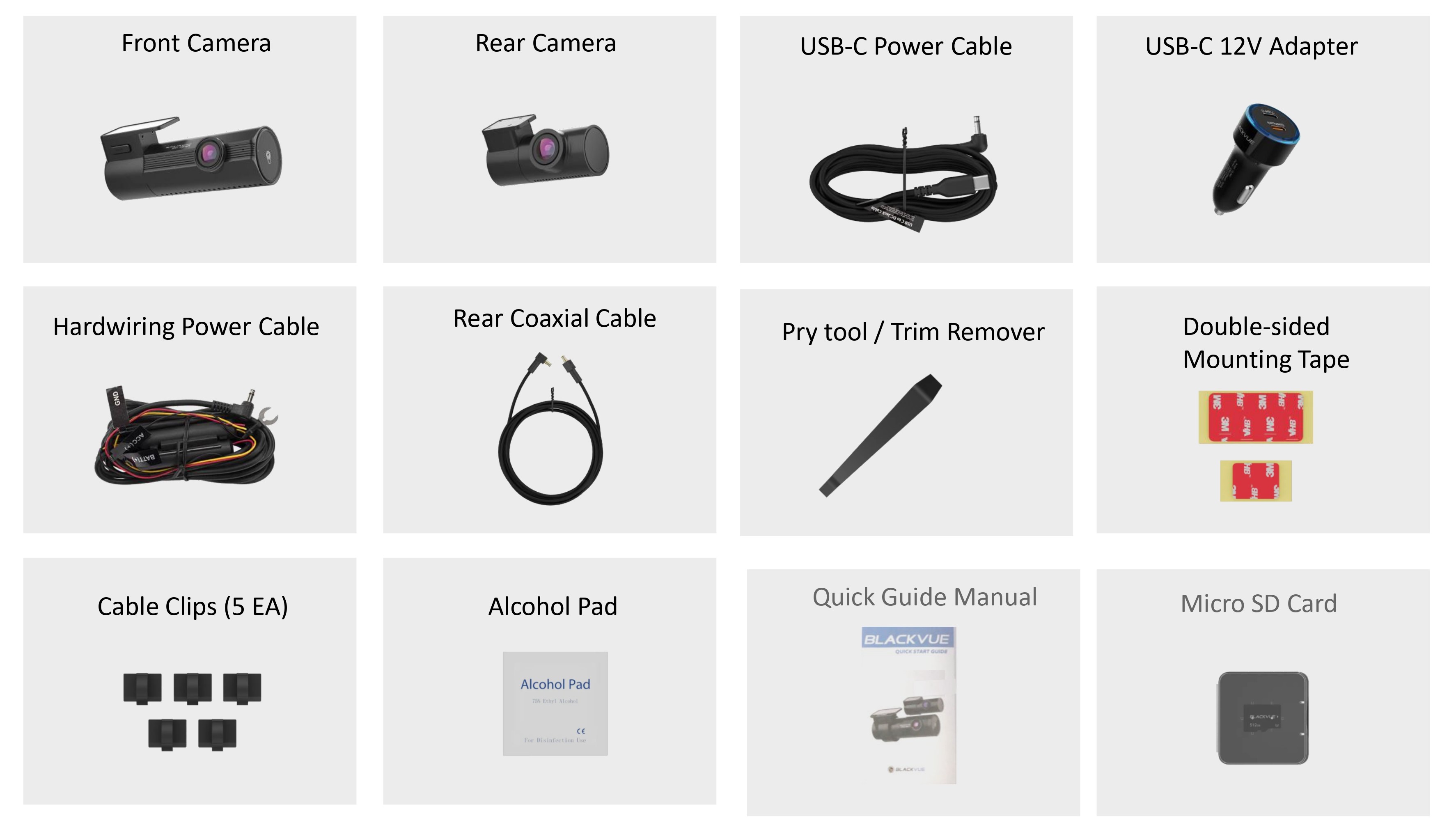

What's included?

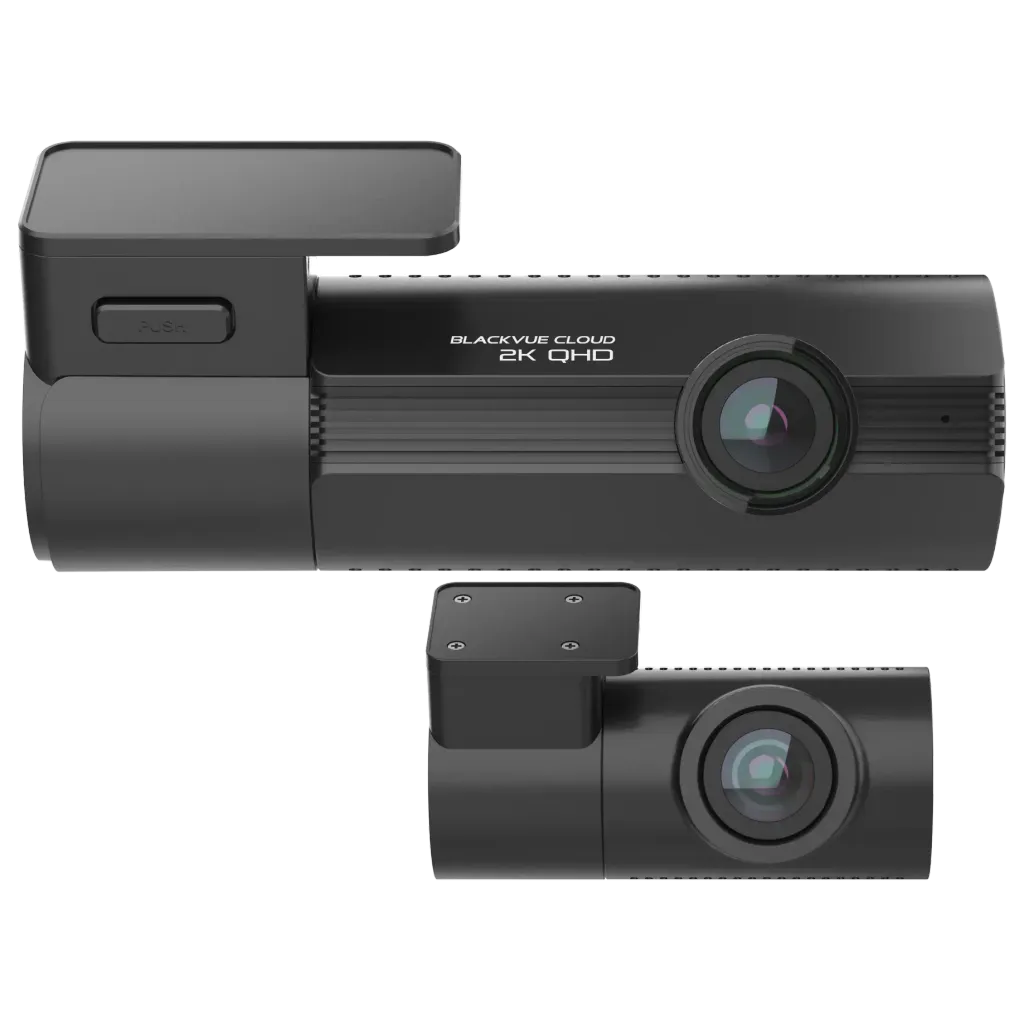

  • Front Camera
  • Rear Camera
  • Hardwiring cable
  • Rear camera connection cable
  • USB-C Power Cable
  • USB-C 12V Adapter
  • microSD Card
  • Quick start guide
  • Cable clips (5EA)
  • Alcohol Pad
  • Pry tool
  • Double sided mounting tape


Technical Specs

Specifications

Model Name
 ELITE 8 - 2CH
Channel
 2CH
Highlights  2K QHD HDR (Front + Rear), 2.4-5GHz Wi-Fi, Cloud (data not    included), Power Saving Parking  Mode,  External LTE Module  (Optional)
Product Dimensions  Front:  L: 129.7mm x W: 40mm x H: 55.3mm  / 203.2g
 Rear :  L: 67mm x W:   29mm x H: 39.1mm / 36.8g
Rear Camera Connection  Coaxial cable
Memory Support   microSD card up to 1TB
Smart Event Recording
 - Driving Impact
 - Parking Impact
 - Overspeed
 - Hard Acceleration
 - Hard Braking
 - Hard Cornering
 *( Including 10 sec,. Pre-Event buffer)
Parking Mode  Power Saving (< 1mA)
 Motion Detection
 Time Lapse
Parking Mode Event Voice Notifications
 Yes
Protection Systems
 Timer Cut-Off: 1 - 48H
 Low Voltage Cut-Off:
 Passenger Vehicle 11.8~12.5V
 Heavy Vehicle 22.8~ 24V
 High Temperature Cut Off (70°C)
Imaging Sensor
 Front and Rear: Sony STARVIS™ CMOS Sensor
 (IMX675)
Viewing Angle
 Front and Rear: Diagonal 142°, Horizontal 118°, Vertical 62°

Resolution Frame Rate
   Front and Rear: 2K QHD (2560 x 1440) @ 30fps
  * Frame rate may vary during Wi-Fi streaming.
Video Codec
 H.264 (AVC)
Image Quality and Bitrate Front/Rear
 Highest (Extreme) : 25 + 20 Mbps
 HIghest (Default)   : 20 + 15 Mbps
 High                       : 15 + 10 Mbps
 Normal                   : 10 +   8 Mbps

Format Free
 Yes (Adaptive)
Event File Overwrite Protection
 Yes (up to 50)
SD card Failure Alert
 Yes
Scheduled Reboot
 Yes
Video File Extension
 MP4
Wi-Fi
 Built-in (802.11ac - 2.4-5GHz)
Cloud Compatible
 Yes
GPS
 Built-in (Dual Band: GPS, GLONASS)
Microphone
 Built-In
Speaker  Built-In
Impact Sensor  3-Axis Acceleration Sensor

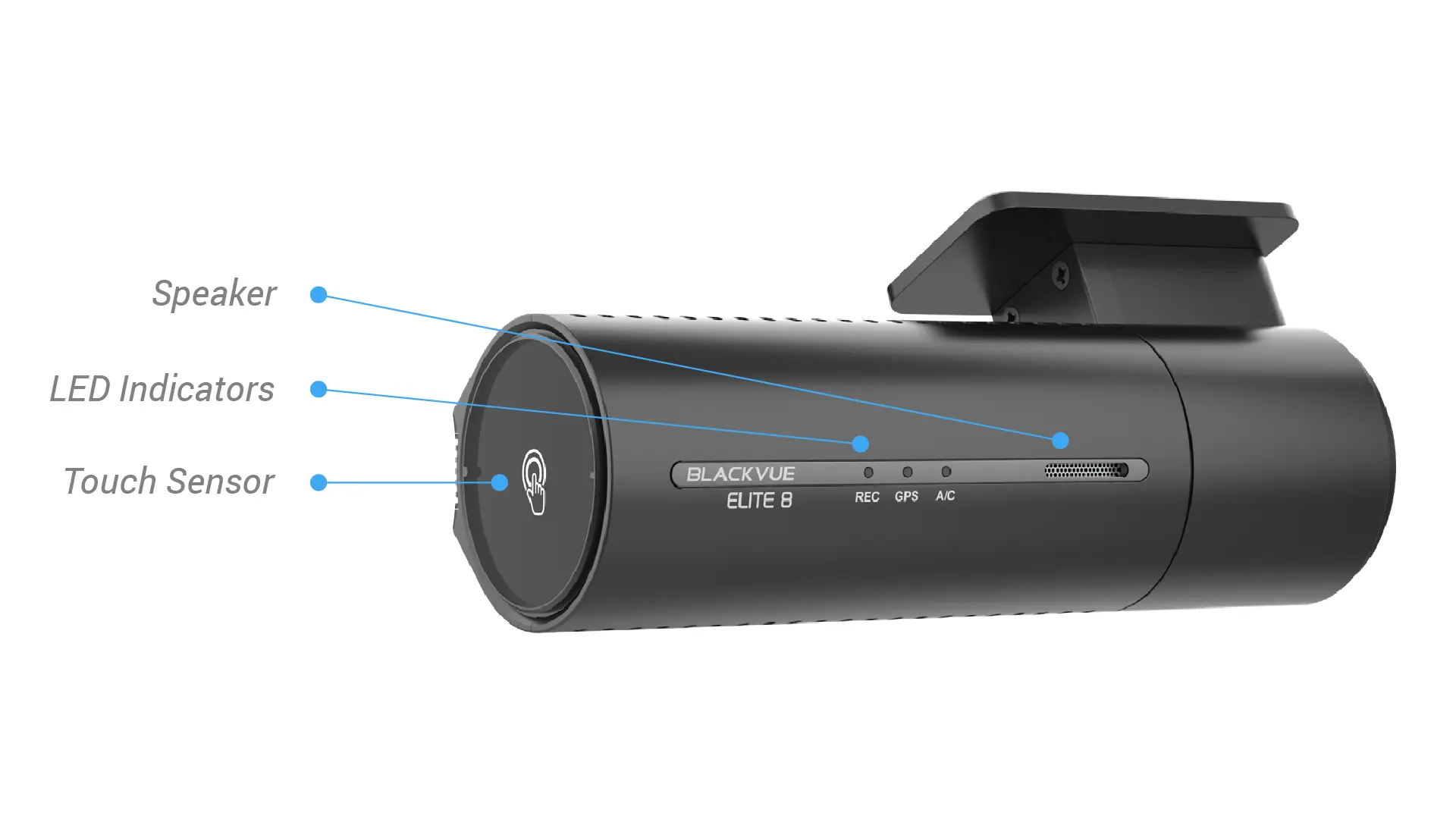

LED Indicators
 Front: Recording status, GPS connectivity, A/C   (App/Cloud) connectivity
  Rear: Power LED

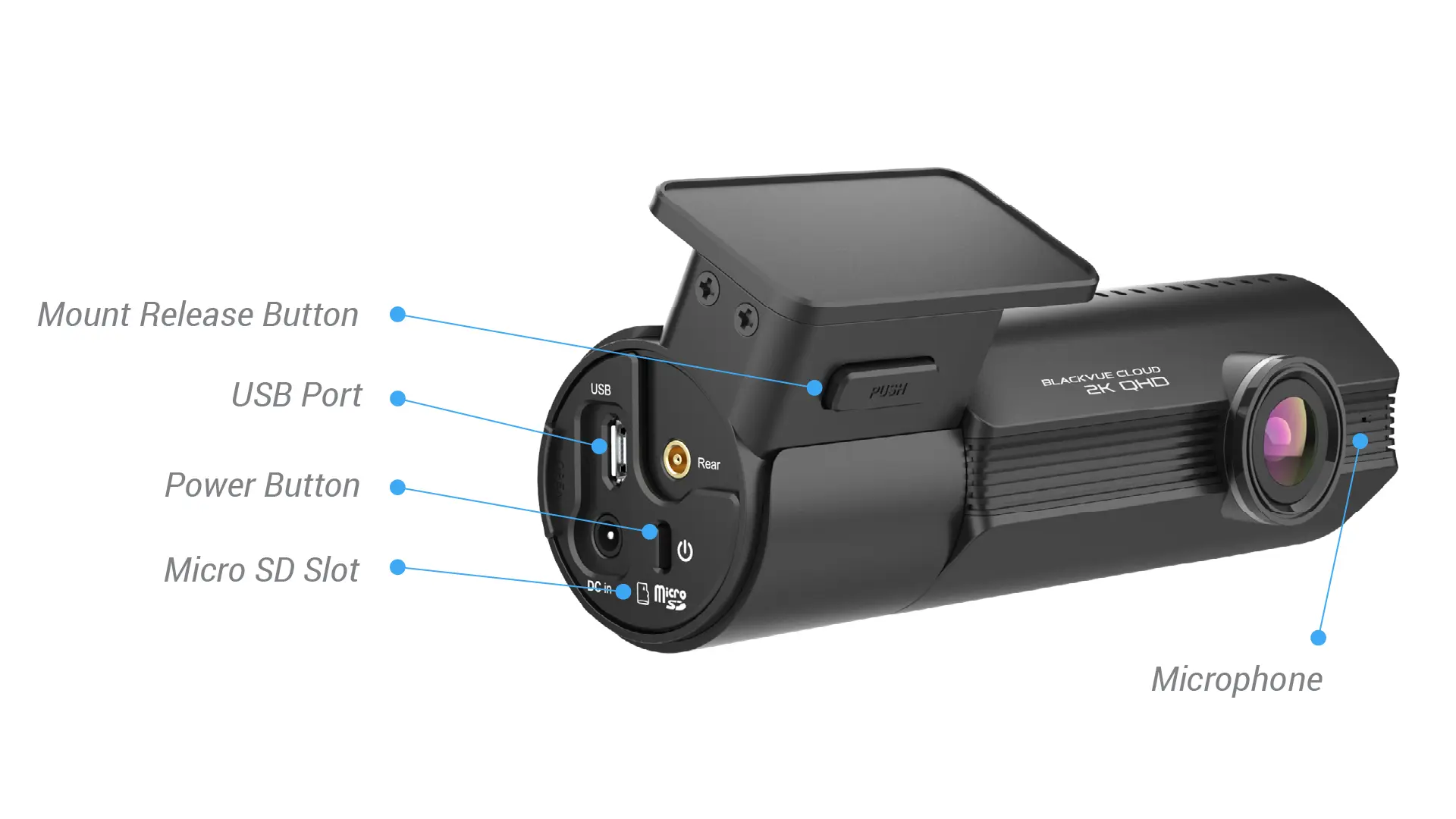

Button
 Power Button: Short press to turn on / Long press to turn
                          off
 Touch Sensor: Pressing the touch sensor triggers manual
                         recording depending n the firmware
                         settings.
 Bluetooth Remote Button (Optional): Manual Recording
Operation Temperature
 -20°C - 65°C

Storage Temperature
 -20°C - 70°C
High Temp Cut Off
 Approx. 70°C
Backup Battery
 Built-In Capacitor
Input Power

 DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour
Normal Mode (GPS On/2CH): 6W (Avg: 500mA/12V)

 Parking Mode (GPS Off/2CH): 5.04W (Avg: 420mA/12V)

 Power Saving Mode: Under 0.012W (Avg, <1mA/12V)

*Actual power consumption may vary depending on use
conditions and environment.
Certifications
 Front: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE
 Rear : FCC, IC(ISED) CE, RoHS, WEEE
Software  BlackVue PC Viewer
 *Windows 7 or higher and Mac Sierra OS x (10.12) or higher
 FLEETA Web Viewer
 *Chrome 71 or higher, Safari 13.0 or higher
Application
 BlackVue Application
 (Android 10.0 or higher, IOS 15.0 or higher)
Others
 Adaptive Format-Free File Management System
Bluetooth
 Built-in (V2.1 + EDR/5.3)
LTE  External (with optional LTE Module)


Recording Time


Model Memory Capacity Image Quality
Resolution

2K QHD @ 30fps + 2K QHD @ 30 fps
ELITE 8-2CH 64GB Extreme 2 HR 35 Min
High  3 HR 5 Min
Medium 4 HR 35 Min
Low 6 HR 20 Min
128GB Extreme 5 HR 15 Min
High 6 HR 50 Min
Medium 9 HR 20 Min
Low 12 HR 40 Min
256GB Extreme 11 HR
High 13 HR 55 Min
Medium 19 HR 5 Min
Low 25 HR 30 Min
512GB Extreme 22 HR 30 Min
High 28 HR 30 Min
Medium 38 HR 50 Min
Low 52 HR
1TB Extreme 45 HR 10 Min
High 57 HR 10 MIn
Medium 78 HR
Low 104 HR 20 Min



Package Info

WEIGHT: 1 kg
DIMENSIONS: 159 x 142 x 90 mm
MEMORY CAPACITY: 64GB
