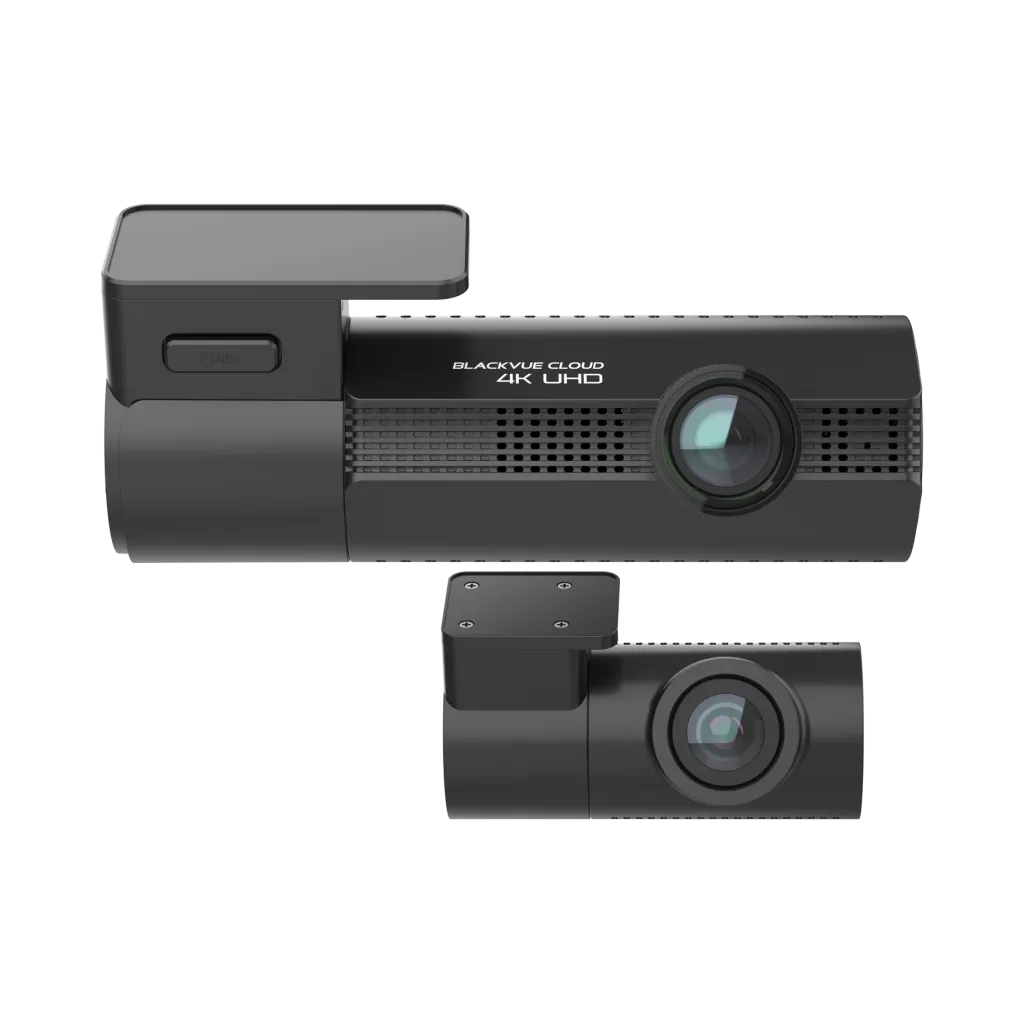

• elite-9-front-rear

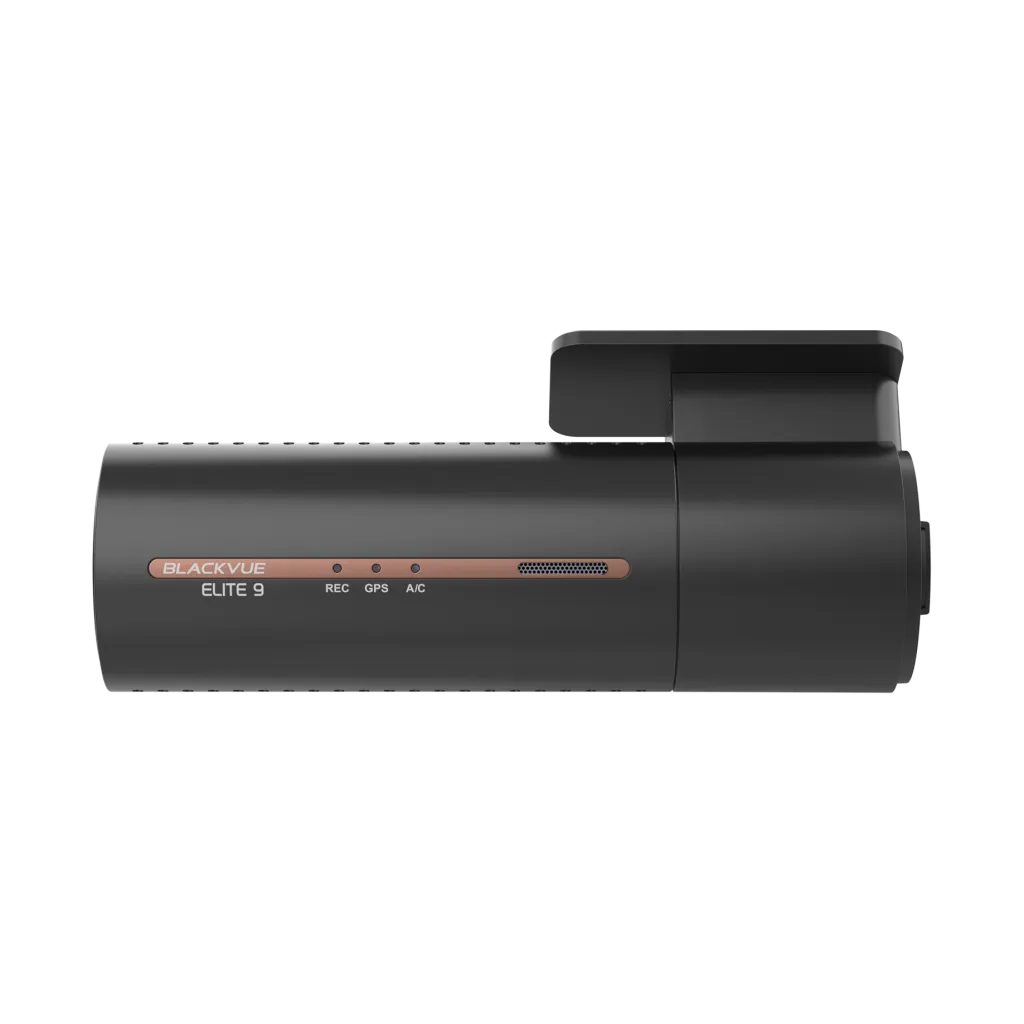

  • elite-9-front-back

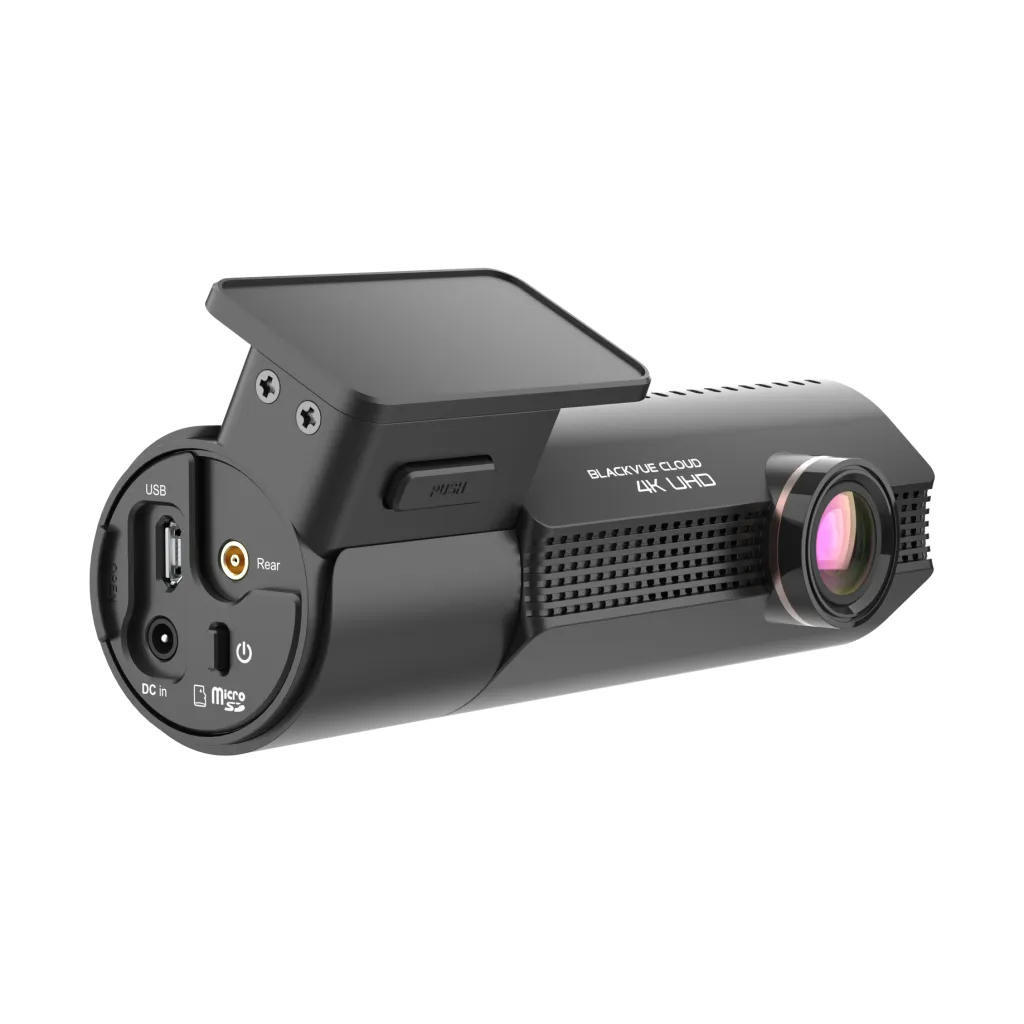

  • elite-9-front-side

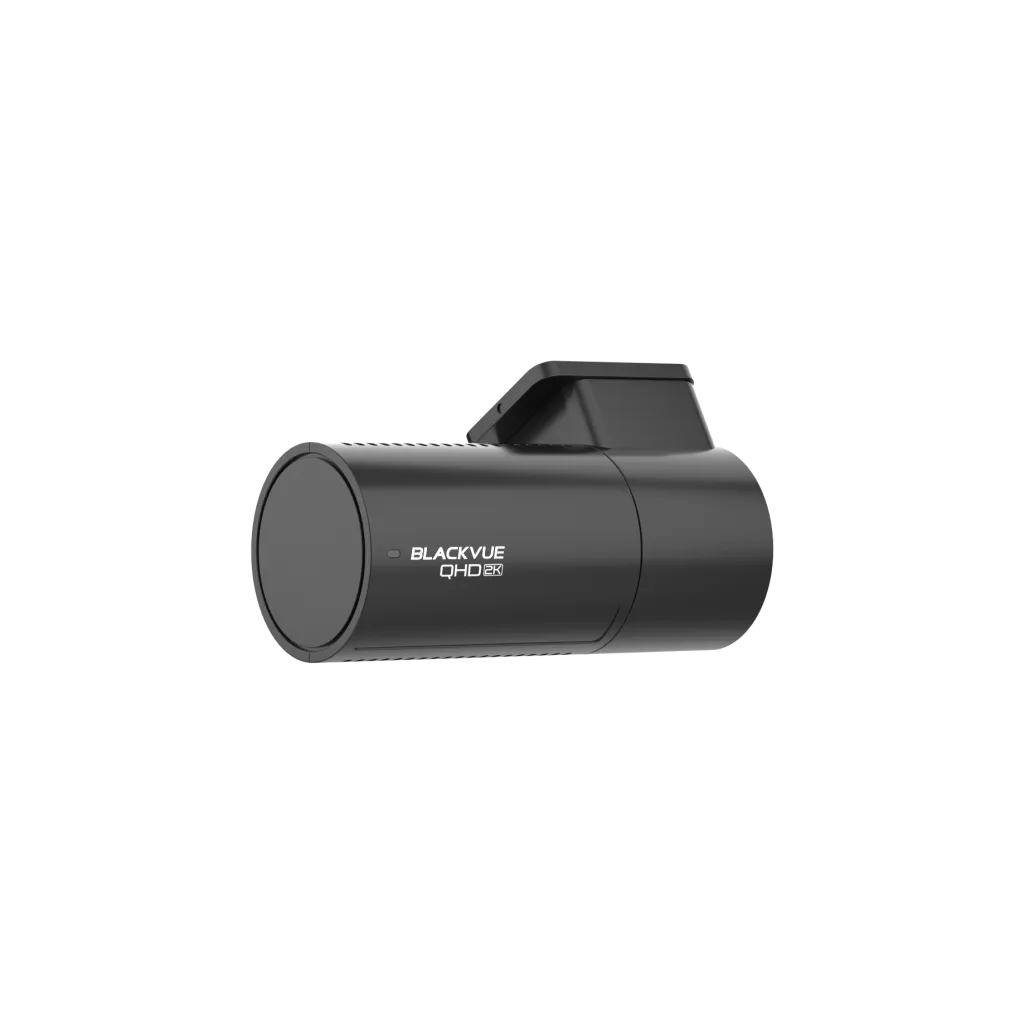

  • elite-9-rear

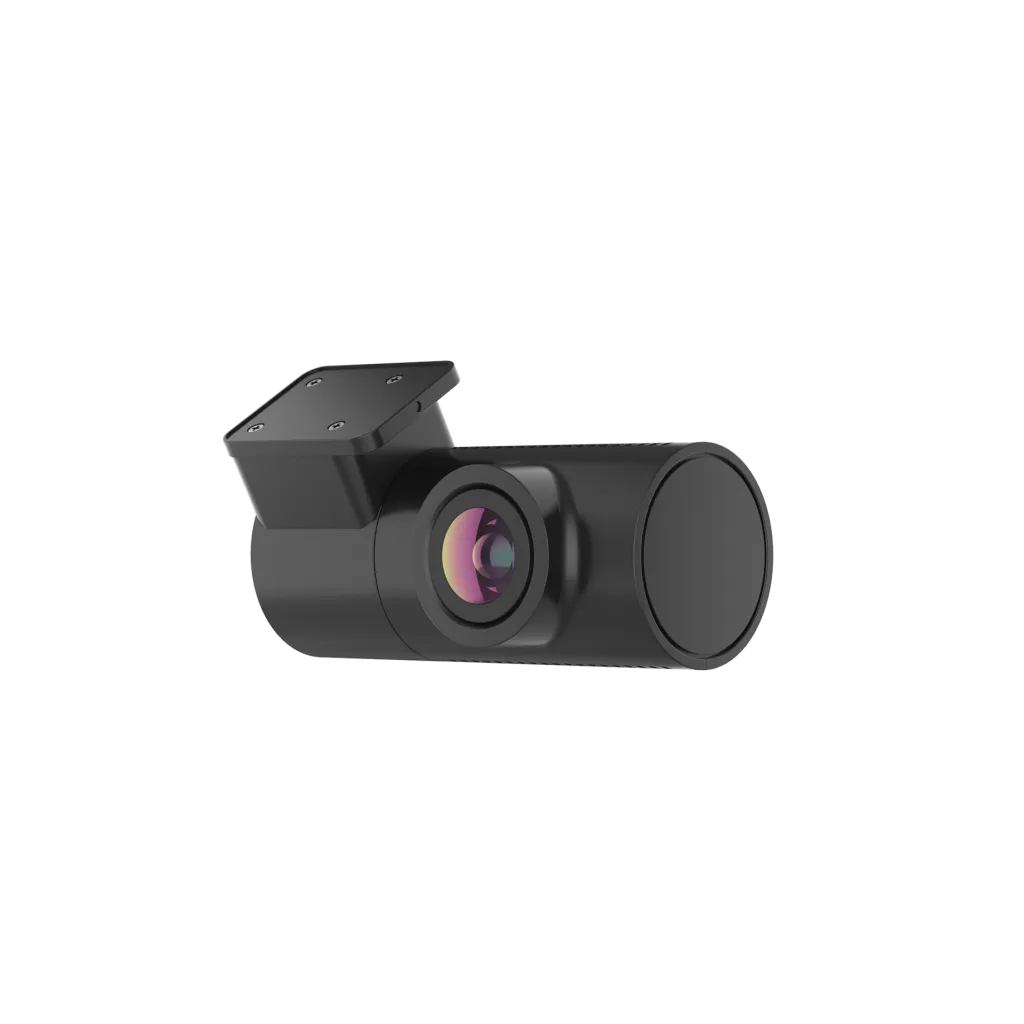

  • elite-9-rear-back
  • 18-month-and-64GB
1

BlackVue ELITE 9-2CH

S$ 798.00
S$ 798.00
S$ 0.00
View More
Add to wishlist

Features

ELITE 9 redefines dash cam clarity by combining the best components with BlackVue’s expert image tuning mastery acquired over 18 years of experience.

ELITE 9 features top-of-the-line 4K UHD Sony IMX678 STARVIS 2 image sensors in front and 2K QHD Sony IMX675 STARVIS 2 rear camera.

HDR support on both front and rear cameras.

BlackVue HDR also reduces motion blur and improves detail, making license plates easier to read on moving vehicles.

In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording.

ELITE9_launch_SNS2


ELITE-8-installed-(FHD)

ELITE 9 with icons

BlackVue WiFi Dual Full HD Dashcam with Sony’s STARVIS 2 image sensor.

  • 4K UHD Front camera and 2K QHD Rear camera.
  • High Dynamic Range (HDR)
  • Ultra-low Power Parking Mode.
  • Fast 5GHz Wi-Fi.
  • Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
  • WiFi built-in
  • Adaptive Format Free
  • 64GB microSD card included
  • Support up to 1TB microSD card
  • Support Parking Mode with Impact and Motion Detections
  • Support Native Parking Mode (with included hardwiring cable)

Elite 8 overview 1 and 2 (R2)-02Elite 8 overview 1 and 2 (R2)-01

Video




What's included?


  • Front Camera
  • Rear Camera
  • Hardwiring cable
  • Rear camera connection cable
  • USB-C Power Cable
  • USB-C 12V Adapter
  • microSD Card
  • Quick start guide
  • Cable clips (5EA)
  • Alcohol Pad
  • Pry tool
  • Double sided mounting tape


Technical Specs

Specifications

Model Name
 ELITE 9 - 2CH

Channel
 2CH

Highlights
 4K UHD HDR (Front)+ 2K QHD HDR (Rear), 2.4-5GHz  Wi-Fi, Cloud (data not included), Power Saving Parking  Mode,  External LTE Module  (Optional)

Product Dimensions
 Front:  L: 129.7mm x W: 40mm x H: 55.3mm  / 203.2g
 Rear :  L: 67mm x W:   29mm x H: 39.1mm / 38.8g

Rear Camera Connection
Coaxial cable

Memory Support
microSD card up to 1TB

Smart Event Recording
 - Driving Impact
 - Parking Impact
 - Overspeed
 - Hard Acceleration
 - Hard Braking
 - Hard Cornering
 *( Including 10 sec,. Pre-Event buffer)

Parking Mode
 Power Saving (< 1mA)
 Motion Detection
 Time Lapse

Parking Mode Event Voice Notifications
 Yes

Protection Systems
 Timer Cut-Off: 1 - 48H
 Low Voltage Cut-Off:
 Passenger Vehicle 11.8~12.5V
 Heavy Vehicle 22.8~ 24V
 High Temperature Cut Off (70°C)

Imaging Sensor
 Front: Sony STARVIS 2 CMOS Sensor
 (IMX678)
 Rear: Sony STARVIS 2 CMOS Sensor
 (IMX675)

Viewing Angle
 Front: Diagonal 146°, Horizontal 125°, Vertical 68°
 Rear: Diagonal 142°, Horizontal 118°, Vertical 62°

Resolution Frame Rate
   Front:  4K UHD HDR @ 30fps
   Rear:   2K QHD HDR @ 30fps
  * Frame rate may vary during Wi-Fi streaming.

Video Codec
 H.265 (HEVC), H.264 (AVC)

Image Quality and Bitrate Front/Rear
 Extreme (H.265)    : 60 + 25 Mbps
 Extreme (H.264)    : 40 + 25 Mbps
 High (Default)        : 30 + 20 Mbps
 Medium                  : 20 + 15 Mbps
 Low                        : 10 + 10 Mbps

Format Free
 Yes (Adaptive)

Event File Overwrite Protection
 Yes (up to 50)

SD card Failure Alert
 Yes

Scheduled Reboot
 Yes

Video File Extension
 MP4

Wi-Fi
 Built-in (802.11ac - 2.4-5GHz)

Cloud Compatible
 Yes

GPS
 Built-in (Dual Band: GPS, GLONASS)

Microphone
 Built-In

Speaker
 Built-In

Impact Sensor
 3-Axis Acceleration Sensor

LED Indicators
 Front: Recording status, GPS connectivity, A/C   (App/Cloud) connectivity
  Rear: Power LED

Button
 Power Button: Short press to turn on / Long press to turn
                          off
 Touch Sensor: Pressing the touch sensor triggers manual
                         recording depending n the firmware
                         settings.

 Bluetooth Remote Button (Optional): Manual Recording

Operation Temperature
 -20°C - 65°C

Storage Temperature
 -20°C - 80°C
​
High Temp Cut Off
 Approx. 75°C
​
Backup Battery
 Built-In Capacitor

Input Power

 DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour
 Normal Mode (GPS On/2CH): 5.52W (Avg: 460mA/12V)

 Parking Mode (GPS Off/2CH): 4.32W (Avg: 360mA/12V)

 Power Saving Mode: Under 0.012W (Avg, <1mA/12V)

*Actual power consumption may vary depending on use
conditions and environment.

Certifications
 Front: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE
 Rear : FCC, IC(ISED) CE, RoHS, WEEE

Software  BlackVue PC Viewer
 *Windows 7 or higher and Mac Sierra OS x (10.12) or higher
 FLEETA Web Viewer
 *Chrome 71 or higher, Safari 13.0 or higher

Application
 BlackVue Application
 (Android 10.0 or higher, IOS 15.0 or higher)

Others
 Adaptive Format-Free File Management System

Bluetooth
 Built-in (V2.1 + EDR/5.3)

LTE
External (with optional LTE Module)


Recording Time



Model

 Memory Capacity Image Quality
Resolution

 4K UHD HDR (Front)



 2K QHD HDR (Rear)
ELITE 9-2CH 64GB Extreme (H.265) 1 HR 20 Min
Extreme (H.264) 1 HR 50 Min
High2 HR 25 Min
Medium3 HR 20 Min
Low 5 HR 40 Min
128GB Extreme (H.265) 2 HR 50 Min
Extreme (H.264)3 HR 45 Min
High4 HR 55 Min
Medium 6 HR 50 Min
Low11 HR 25 Min
256GB Extreme (H.265) 5 HR 55 Min
Extreme (H.264)7 HR 40 Min
High 10 HR
Medium 13 HR 50 Min
Low 23 HR
512GB Extreme (H.265) 12 HR
Extreme (H.264)15 HR 35 Min
High 20 HR 30 Min
Medium 28 HR 5 Min
Low 46 HR 30 Min
1TB Extreme (H.265) 24 HR 20 Min
Extreme (H.264)31 HR 30 Min
High 41 HR 15 MIn
Medium 56 HR 30 Min
Low 93 HR 20 Min



Package Info

WEIGHT: 1 kg
DIMENSIONS: 157 x 138 x 90 mm
MEMORY CAPACITY: 64GB
